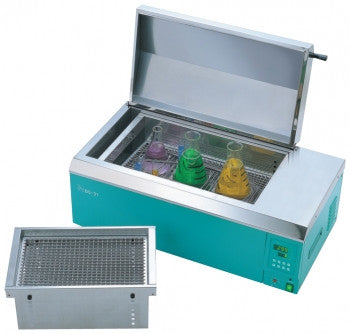

Jeio Tech BS Series Reciprocal Shaking Baths

Size	SKU	Price
17 Liter	JT:AAH44063U	$3,443
25 Liter	JT:AAH44113U	$3,654

Category	Shaking Water Baths
Manufacturer	Jeio Tech
Country of manufacture	South Korea

Median product fulfillment time
Median fulfillment time for Jeio Tech products

Reciprocal shaking & heating baths, ideal for sample incubation conditions for DNA,�?tissue, or cell culture applications.

Performance

Temperature range from ambient +5°C to 100°C.
Microprocessor PID control / Automatic tuning / Calibration.
Separate control keys for shaker mechanism allows the unit also to be used as heating bath.

Convenience

Multiple LED displays (0.1°C and 1 rpm resolution) for setting various values.
Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
Minimal shock to the samples thanks to the shaker’s gentle start feature.
Spring wire rack is easy to equip and the height of the rack is easily adjustable.
Gable cover minimizes of the liquid loss and prevents dripping of the bath liquid into the samples.
Silent and anti-vibration BLDC motor.
SUS 304 spring wire rack (two tier rack with flexible crossed spring) provides various ways of glassware settings.

Safety

Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact.
Complete safety protection system with warning alarms.

Type	Shaking Water Baths
Incubation	Yes
Refrigeration	No
Stacking	No
Platform Area (ft^2)	N/A
Max Load (lb)	N/A
RPM - Max	180
RPM - Min	20
Orbit Diameter (mm)	N/A
Platform Dimensions	7.8x11.8, 12.6x11.8
Warranty (years)	1 (2 years after submission of warranty registration card)
Weight (lb)	57 to�?66
Width (in)	16.9, 21.7
Depth (in)	17.3
Height (in)	14

�?

Model		BS-06	BS-11
Bath volume (L / cu ft)		17 / 0.6	25 / 0.9
Working temperature range (℃ / ℉)		Amb. +5 to 100 / Amb. +9 to 212
Temperature stability ¹⁾ (±℃ / ℉)		0.2 / 0.36
Shaking system	Motion / Speed range (rpm)	Reciprocating / 20 to 180
Shaking system	Recip stroke length (mm / inch)	25, 30, 35 / 1.0, 1.2, 1.4 available - Standard 30 / 1.2
Dimension	Bath opening /depth (W×L, D) (mm / inch)	199x300, 235 / 7.8x11.8, 9.3	319x300, 235 / 12.6x11.8, 9.3
	Exterior (W×L×H) (mm / inch)	430×440×355 / 16.9×17.3×14	550×440×355 / 21.7×17.3×14
	Net weight (kg / lbs)	26 / 57	30 / 66
Electrical requirements (120V, 60Hz)		7.1A	8.8A
Cat. No.		AAH44063U	AAH44113U

�?1) Technical data according to DIN 12876. (bath fluid : water at 50℃)
