MAGic Clamp™ Attachments

Style	SKU	Price
25 ml flask clamp	BMS:H1000-MR-25	$71
50 ml flask clamp	BMS:H1000-MR-50	$38
125 ml flask clamp	BMS:H1000-MR-125	$40
250 ml flask clamp	BMS:H1000-MR-250	$45
500 ml flask clamp	BMS:H1000-MR-500	$45
Adjustable flask clamp (125 / 250 / 500 ml)	BMS:H1000-MR-CMB	$53
1000 ml flask clamp	BMS:H1000-MR-1000	$69
2000 ml flask clamp	BMS:H1000-MR-2000	$89
2800 ml flask clamp	BMS:H1000-MR-3000	$112
Microplate clamp	BMS:H1000-MR-MP	$97
32 x 15 ml tube rack	BMS:H1000-MR-T15	$181
15 x 50 ml tube rack	BMS:H1000-MR-T50	$181
30 x 15 ml + 20 x 50 ml hybrid tube rack	BMS:H1000-MR-1550	$181
72 x 14mm tube rack	BMS:H1000-MR-T14	$181
4 x 500 / 600 ml bottle rack	BMS:H1000-MR-T600	$210
12 x 1.5 ml horizontal tube rack	BMS:H1000-MR-T15H	$126
4 x 15 ml horizontal tube rack	BMS:H1000-MR-T150H	$126
2 x 50 ml horizontal tube rack	BMS:H1000-MR-T500H	$126
Tilted holder for 15mL & 50mL tube racks	BMS:H1000-MR-TSR	$136

Category	Orbital Shaker Accessories
Manufacturer	Benchmark Scientific

Median product fulfillment time
Median fulfillment time for Benchmark Scientific products

Overview

The following attachments are available for the MAGic Clamp™ platforms. Maximum capacities for each type of attachment and instrument are listed.

	Orbi-Shaker JR / Incu-Shaker Mini	Orbi-Shaker / Orbi-Shaker CO2	Incu-Shaker 10 / Orbi-Shaker XL
Flask Clamps
25 ml	20	30	49
50 ml	20	30	49
125 ml	12	24	36
250 ml	8	14	25
500 ml	6 / 5	9	16
Adjustable (125 / 250 / 500 ml)	6 / 5	9	16
1000 ml	4 / 2	5	9
2000 ml	0	2	5
2800 ml	0	0	4
Microplate Clamp	4	6	8
Tube / Bottle Racks
32 x 15 ml tubes	2	3	8
15 x 50 ml tubes	2	3	8
30 x 15 ml + 20 x 50 ml tubes	1	2	4
72 x 14 mm culture tubes	1	2	4
4 x 500 / 600 ml bottles	0	1	1
12 x 1.5 ml tubes, horizontal	1	2	4
4 x 15 ml tubes, horizontal	1	2	4
2 x 50 ml tubes, horizontal	1	2	4
Tilted Holder for 15 ml & 50 ml tube racks*	2 / 1	3	8

*The tilted holder for 15 ml & 50 ml tube racks is specifically for use with the MAGic Clamp 15 x 50 ml tube rack, 32 x 15 ml tube rack, or 30 x 15 ml + 20 x 50 ml tube rack. It holds one such rack.

FAQ

Can the MAGic Clamp microplate clamp be used with deep well plates?

Yes, it can.

Can I use other similarly sized tubes in the 15 ml tube rack?

The H1000-MR-T15 32 x 15 ml tube rack is supplied with inserts to secure standard 15 ml centrifuge tubes in place which reduce the diameter of the hole to 16.8 mm. If you remove the inserts, the diameter of the hole is 20.4 mm, which can accommodate tubes of ~20 mm outside diameter.

I would like to shake 17 mm x 95 mm culture tubes. Is there a MAGic Clamp attachment that I can use to hold these culture tubes?

17 mm x 95 mm culture tubes will fit into the 32 x 15 ml tube rack.

I would like to shake 100 ml Erlenmeyer flasks. Can I use the MAGic Clamp platform and attachments?

Yes. 100 ml Erlenmeyer flasks will fit into the clamp for 125 ml flasks.

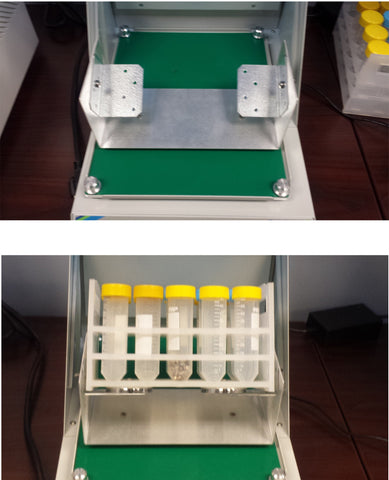

How does the Tilted Holder for 15 ml & 50 ml tube racks work? Do you have a picture of it?

The tilted holder has an adjustable platform onto which you would place one of the MAGic Clamp tube racks. See the image below for a visual of the holder itself.
