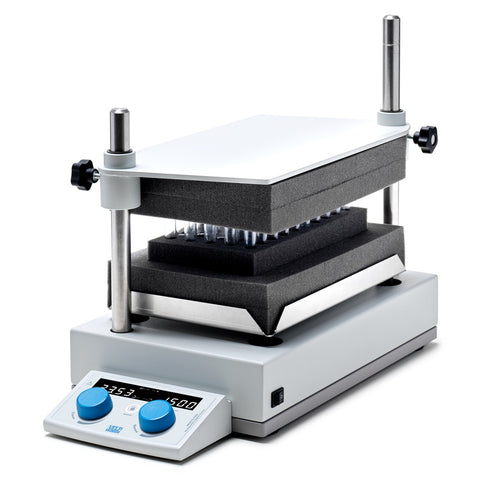

Versatile and compact vortex mixer for all the multi-tube mixing tasks as it stirs solutions from 100 up to 2500 rpm thanks to the powerful brushless motor. Vigorous as well as gentle mixing is supported with premium performance making the MULTI-TX5 Digital ideal both for microbiology tasks and R&D or quality control in diverse industries like pharma, cosmetics, food & beverage, and chemicals.
The MULTI-TX5 Digital supports various foam racks for different vortexing tubes being an extremely versatile multi-tube vortex mixer to emulsify, disintegrate, mix, or homogenize samples. Typical applications include suspensions, genotyping, DNA and RNA Testing.
Maximized comfort and simplified operation for enhanced productivity in the lab
With the MULTI-TX5 Digital, you can perform any mixing tasks and then change the foam rack for your next application in just a few simple steps. Manual operations are streamlined thanks to the exclusive design allowing you to remove the plate or hold it on the longer shaft.
The structure of the new MULTI-TX5 Digital is carefully designed for outstanding comfort, maximized resistance, and minimized footprint over the bench.
The control panel is easily accessible and extremely intuitive. Set and monitor the stirring time and the stirring speed thanks to the handy knobs and the bright easy-to-read double digital display.
Various foam racks for vortexing tubes with different dimensions ensure premium versatility in the lab and make the MULTI-TX5 Digital ideal for a wide variety of mixing applications. Sample rack for test tube Ø12, 44 positions is supplied with the instrument. Other sizes are available for purchase below.
|Platform Area (ft^2)||0.61|
|Max Load (lb)||N/A|
|RPM - Max||2500
|RPM - Min||100
|Orbit Diameter (mm)||3.6
|Platform Dimensions||11.6 x 7.6 in|
|STIRRING SPEED||100 - 2500 rpm|
|SPEED SETTING ACCURACY||5 rpm|
|TIMER||From 1 min to 99 h : 59 min|
|TIMER SETTING STEPS||1 min|
|AUTOREVERSE||From 5 s to 99 min : 59 s|
|AUTOREVERSE SETTING STEPS||1 s|
|INTERMITTENT MODE||From 5 s to 99 min : 59 s|
|INTERMITTENT MODE SETTING STEPS||1 s|
|PULSE MODE||2 s shaking, 1 s pause (cyclic)|
|TYPE OF MOVEMENT||Orbital|
|ORBITAL DIAMETER||3.6 mm|
|WORKING IN CONTINUOUS||Max 2 hours|
|POWER INPUT||40 W|
|SUPPORT PLATE DIMENSION||294 x 194 mm
11.6 x 7.6 in
|DIMENSIONS (WXHXD)||245 x 380 x 490 mm
9.6 x 14.9 x 19.3 in
