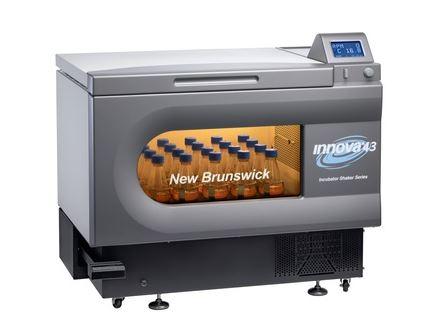

New Brunswick™ Innova® 43 Series

Temperature range	Orbit diameter	SKU	Price
Ambient +5°C to 80°C	1" orbit	EPP:M1320-0000	$19,675
Ambient +5°C to 80°C	2" orbit	EPP:M1320-0010	$19,675
Ambient -20°C to 80°C	1" orbit	EPP:M1320-0004	$22,300
Ambient -20°C to 80°C	2" orbit	EPP:M1320-0014	$22,300

Category	Floor Models
Manufacturer	Eppendorf
Country of manufacture	germany

Median product fulfillment time
Median fulfillment time for Eppendorf products

Overview

The Innova 43 and 43R (refrigerated) shakers are the perfect choice for handling large volumes of cultures with precision and ease. The top loading design allows for vertical placement of the flasks. A pedal operated lid and a window in the sidewall overlooking the samples are examples of why our customers continue to trust our designs. The cast iron triple-eccentric counterbalanced drive is specifically designed to support high-speed applications and heavy workloads – the design has stood the test of time for over 70 years and continues to enable scientists today. The simple user interface allows for easy programming of speed, temperature, time and the VisioNize box can be added to enhance monitoring and adds notifications functionality. Regular servicing can be carried out in-situ, allowing for minimized downtime.

Features:

Console style shaker/incubator with triple-eccentric drive – provides large capacity shaking for flasks up to 6 L
Continuous mode or multiple-step programming
Programmable Innova controls – automatically changes temperature, speed, and optional photosynthetic and UV germicidal lights at timed intervals (Store up to 4 individual programs with 15 steps each)
Top mounted controls and display – for easy, ergonomic viewing and setting
Foot pedal release with easy to opening lid – provides hands-free door opening/closing operation and effortless access to samples
Built in spill pan catches accidental spills to aid cleaning and protects drive mechanism. Also allows use as a water reservoir to reduce sample evaporation

Key Attributes

Type	Floor
Platform Area (ft^2)	3.75
Platform Dimensions	30 × 18 in
Max Load (lb)	not specified
Incubation	Yes
Refrigeration	Yes or No
RPM - Max	300, 500
RPM - Min	25
Orbit Diameter (mm)	2.5 mm
Warranty	2 Year

Manufacturer Specifications

Models	Innova^® 43, orbit diameter 2.5 cm (1 in)	Innova^® 43R, orbit diameter 2.5 cm (1 in)	Innova^® 43, orbit diameter 5.1 cm (2 in)	Innova^® 43R, orbit diameter 5.1 cm (2 in)
External height (with lid/door open)	165.1 cm (65 in)	165.1 cm (65 in)	165.1 cm (65 in)	165.1 cm (65 in)
Timer	0.01 – 99.59 h, continuous	0.01 – 99.59 h, continuous	0.01 – 99.59 h, continuous	0.01 – 99.59 h, continuous
Power supply	120 V, 60 Hz	120 V, 60 Hz	120 V, 60 Hz	120 V, 60 Hz
Dimensions (W × D × H)	115.6 × 81.3 × 103.1 cm / 45.5 × 20 × 40.6 in	115.6 × 81.3 × 103.1 cm / 45.5 × 20 × 40.6 in	115.6 × 81.3 × 103.1 cm / 45.5 × 20 × 40.6 in	115.6 × 81.3 × 103.1 cm / 45.5 × 20 × 40.6 in
Weight w/o accessories	202 kg / 445 lb	216 kg / 475 lb	202 kg / 445 lb	216 kg / 475 lb
Temperature range	Ambient +5 °C to 80 °C	20 °C below ambient to 80 °C	Ambient +5 °C to 80 °C	20 °C below ambient to 80 °C
Audible and visual alarms	yes	yes	yes	yes
Temperature uniformity	±0.25 °C at 37 °C	±0.25 °C at 37 °C	±0.25 °C at 37 °C	±0.25 °C at 37 °C
Available program modes	› Constant speed and temperature › Programmable multi-steps › RS-232 communication port	› Constant speed and temperature › Programmable multi-steps › RS-232 communication port	› Constant speed and temperature › Programmable multi-steps › RS-232 communication port	› Constant speed and temperature › Programmable multi-steps › RS-232 communication port
Drive mechanism	Triple-eccentric counterbalanced drive	Triple-eccentric counterbalanced drive	Triple-eccentric counterbalanced drive	Triple-eccentric counterbalanced drive
Benchtop (B), Under Bench (U), Floor (F) or Stackable (S)	F	F	F	F
Gassing manifold	yes	yes	yes	yes
Water/Humidity monitoring	yes	yes	yes	yes
Internal convenience light	yes	yes	yes	yes
Memory	Non volatile with automatic power failure restart	Non volatile with automatic power failure restart	Non volatile with automatic power failure restart	Non volatile with automatic power failure restart
Motor type	Solid state, DC brushless motor	Solid state, DC brushless motor	Solid state, DC brushless motor	Solid state, DC brushless motor
Photosynthetic lighting	no	yes	no	yes
Platform size	76 × 46 cm (30 × 18 in)	76 × 46 cm (30 × 18 in)	76 × 46 cm (30 × 18 in)	76 × 46 cm (30 × 18 in)
Refrigerated	–	yes	–	yes
Slide-out platform	no	no	no	no
Space-saving glide-up doors	no	no	no	no
Speed range	25 – 500 rpm with 2.5 cm orbit; 25 – 300 rpm with 5.1 cm orbit	25 – 500 rpm with 2.5 cm orbit; 25 – 300 rpm with 5.1 cm orbit	25 – 500 rpm with 2.5 cm orbit; 25 – 300 rpm with 5.1 cm orbit	25 – 500 rpm with 2.5 cm orbit; 25 – 300 rpm with 5.1 cm orbit
Multi-step programming	yes	yes	yes	yes
Steps per program	15	15	15	15
Stored programs	4	4	4	4
cETLus and CE marked	yes	yes	yes	yes
UV germicidal lamp	–	yes	–	yes

SHOW MORE SHOW LESS

select from options below to see SKU
