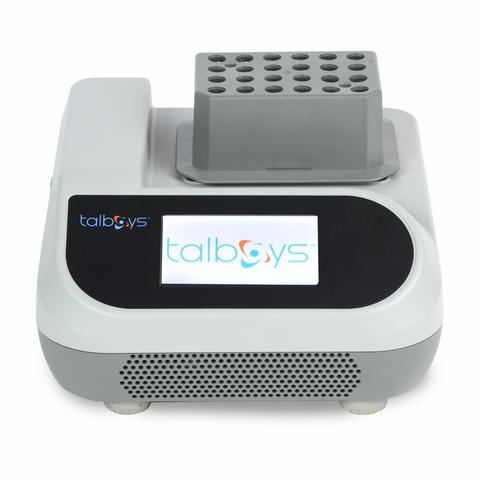

Talboys Thermal Shake Touch

Overview

The Talboys Thermal Shake Touch is designed for applications that require consistent and precise results. With heating and shaking capabilities, the Thermal Shake Touch uses interchangeable blocks to accommodate a wide variety of tubes and microplates. The easy-to-use 4.3" color LCD touch screen allows the user to save and visibly track progress through the live status bar for five user defined programs, each with five individual steps. The unit's enhanced electronics and temperature sensor provide accurate, dependable temperature settings across the operating range.

The Thermal Shake Touch is supplied with a 1.5mL block clear rack and cover. Thermal Shake Touch units include a 5 year, industry leading limited warranty on parts and labor.

Features:

• Intuitive 4.3" color LCD touch screen display
• Ability for rapid heating, cooling*, and high speed shaking (*cooling designated models only)
• Internal memory stores five separate 5-step programs
• Supplied with 1.5mL block
• 5 year industry leading warranty

Also available with an optional NIST Traceable Certificate provided by Troemner's ISO/IEC 17025 accredited laboratory. Multiple data points within the temperature and speed ranges, and time function, are reported on the certificate with the associated uncertainties.

Operating Features:

• Low Profile Design: The low profile design minimizes the unit’s footprint on the bench.
• LCD Touch Screen: Enables faster setting of temperature, speed, and time which can all be viewed at once. Display features on-screen help topics with operational tips available in six languages. Touch screen is compatible with rubber gloves used in labs. USB port can transfer information to a flash drive for data logging, program storage and software updates.
• Program Control: Program control capabilities allow user programmable operation for automated use and memory. Storage for five separate 5-step programs, or unlimited number of programs with the use of the USB.
• Temperature ramp rate: Adjustable temperature ramp rate feature separately defines the heating and cooling rate in increments of 0.5°C/min.
• Single Point Calibration Mode: For maximum temperature accuracy, the single point calibration procedure allows the user to calibrate up to 6 different user defined temperatures.
• Pulse Mode Feature: The unit is equipped with a pulse mode feature for quick vortex applications.

Safety Features:

• Cool Touch Housing: Constructed from a high-quality, heat and chemical resistant polymer. The unit’s housing remains cool to the touch throughout normal operating temperatures.
• Maximum Temperature Limiting Function: Ensures the temperature will not exceed preset limits, allowing the user control of temperature sensitive samples.
• Hot Top Indicator: A hot top warning light will illuminate when the temperature reaches 40°C, and will remain lit until the unit is sufficiently cooled.
• Audible Alarm: In timed mode, an alarm will sound when the time reaches zero or set-point temperature is reached. Additionally, the heat function will automatically shut off if the unit recognizes an internal issue.

Applications: Cell cultures, DNA, RNA, and protein studies
